4-520448-2
Manufacturer:
TE Connectivity
Mfr.Part #:
4-520448-2
Datasheet:
Description:

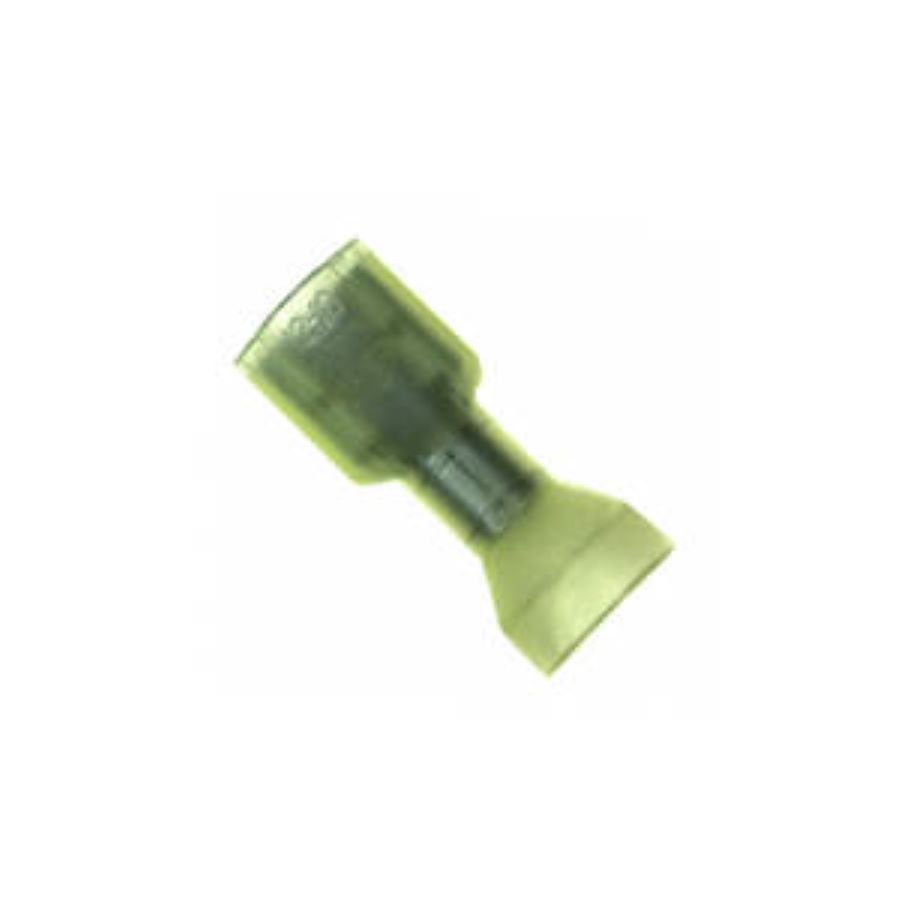

Terminals Free Hanging 10 AWG Female
| Parameter | Value |
|---|---|
| Length | 23.74 mm |
| Material | Brass |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Yellow |
| Gender | Female |
| Wire/Cable Gauge | 10 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Plating | Tin |
| Termination Style | Crimp |
| Mating Tab Width | 6.35 mm |
| Tab Thickness | 810 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 46131
Distributors
pcbx
pcbxUnit Price$0.19065
Ext.Price$0.19065
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19065 | $0.19065 |
| 10 | $0.16757 | $1.67570 |
| 50 | $0.15187 | $7.59350 |
| 100 | $0.13764 | $13.76400 |
| 500 | $0.12697 | $63.48500 |
| 1000 | $0.11713 | $117.13000 |
| 3000 | $0.10943 | $328.29000 |
| 5000 | $0.10814 | $540.70000 |
| 10000 | $0.10687 | $1068.70000 |
